BTF-LIGHTING 5in1 WB5 2.4GHz Tuya WiFi PWM LED Controller Compatible with Alexa/…

Price: $26.99
(as of May 09, 2026 04:47:02 UTC – Details)

Product description

Parameter Table

Brand BTF-LIGHTING Model WB5 Product Name 5 IN 1 Tuya WiFi LED Controller Input Voltage DC12V-DC24V Controller voltage depends on LED strip Power 6A/Channel Total output max 15A. DC12V 180W max. DC24V 360W max. Wi-Fi 2.4GHz Wi-Fi Waterproof level IP30 Non-waterproof Operation temperature -4℉~140℉（-20℃~+60℃ ） Ways of working Smart Life/Tuya Smart APP or Match with RF remote Support LED Types PWM FCOB COB 3014 5630 3528 2835 5050 Single color , CCT, RGB, RGBW, RGBCCT LED Strip Light Control Distance 30m (98.42ft) Compatible RF Remote RC01RFB; RC02RFB; RC03RFB;RC04RFB; RFC05RFB Compatible RF Panel Remote WR01RF; WR02RF

1 PWM vs SPI LED Diff 2 Product Detail 3 Connect Wire 4 Switch 5 Output Mode

1 Monochrome LED Strip 2 CCT LED Strip 3 RGB LED Strip 4 RGBW LED Strip 5 RGBCCT LED Strip

1 Multi-control Method 2 Phone Remote Control 3 Compatible RF Remote 4 Group Control 5 System Wire Diagram

Enjoy Technical Family to be Super Technical Expert

【5 in 1 Tuya WiFi PWM Controller】WB5=C01W+C02W+C03W+C04W+C05W. C01W=Single Color, C02W=CCT(Dual White), C03W=RGB, C04W=RGBW, C05W=RGB+CCT. This Controller supports PWM monochrome, CCT, RGB, RGBW, RGB + CCT, WW+CW LED strip. Switch mode by one setting button.
【PWM LED Type】The operating voltage range is DC12V-24V.Without IC chip PWM LED. Single color 2 wires, CCT 3 wires, RGB 4 wires, RGBW 5 wires, RGBCCT 6 wires. FCOB 5050 3528 5630 5730 3014SMD etc LED string strip bulb lamp. Power: 6A/Channel,Total output max 15A .DC12V 180W max. DC24V 360W max.

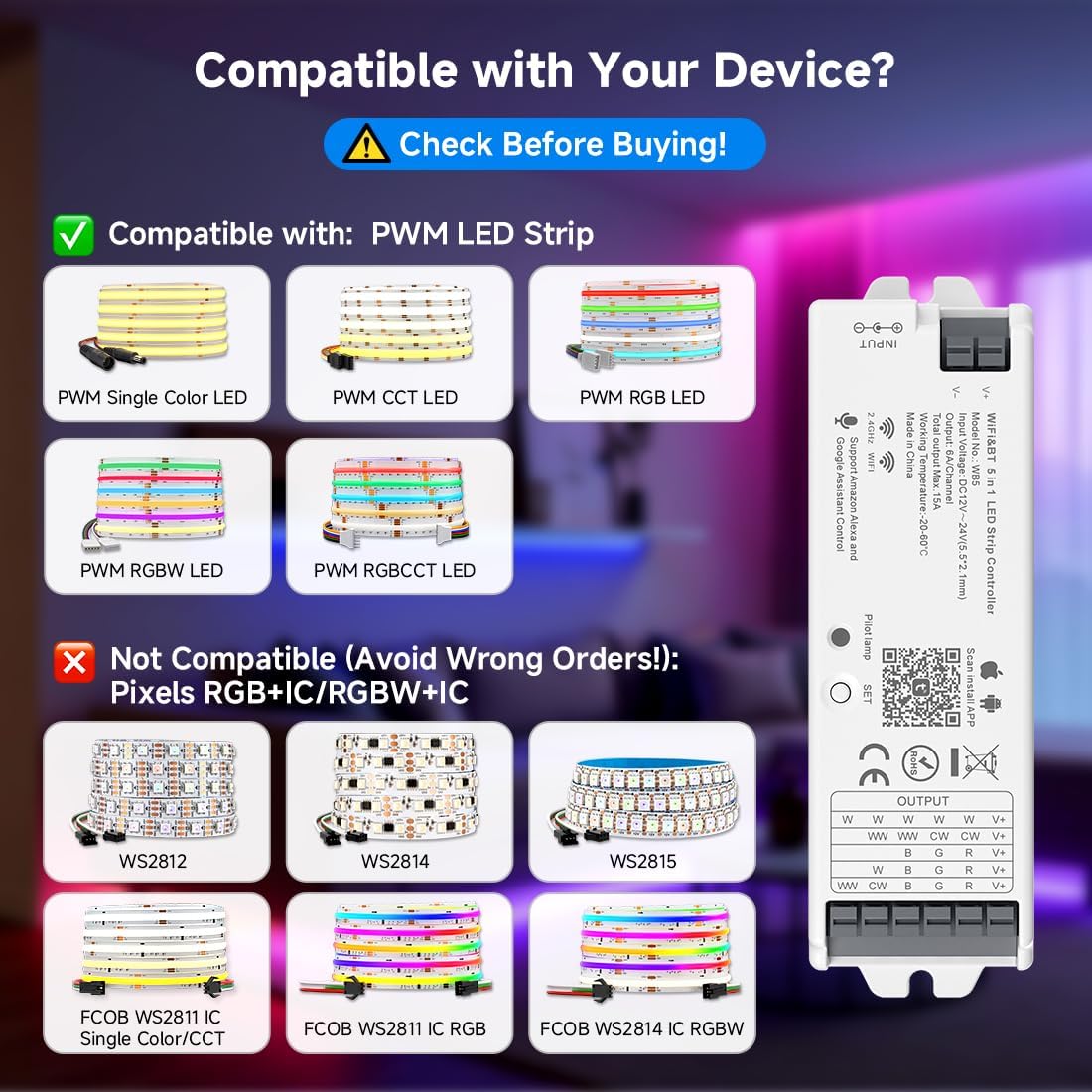

【Not Compatible with Addressable LED Strips】This PWM 5-in-1 2.4GHz WiFi Controller (Model WB5) is not compatible with addressable LED strips.Such as: WS2811/WS2812/WS2813/WS2814/WS2815/SK6812/WS2805/FCOB WS2811 IC (Single Color/CCT/RGB)/FCOB WS2812 IC RGB/FCOB WS2814 IC RGBW, or any FCOB/SMD strips using these ICs (RGB/RGBW/RGBCCT). Please verify your strip type before purchase.

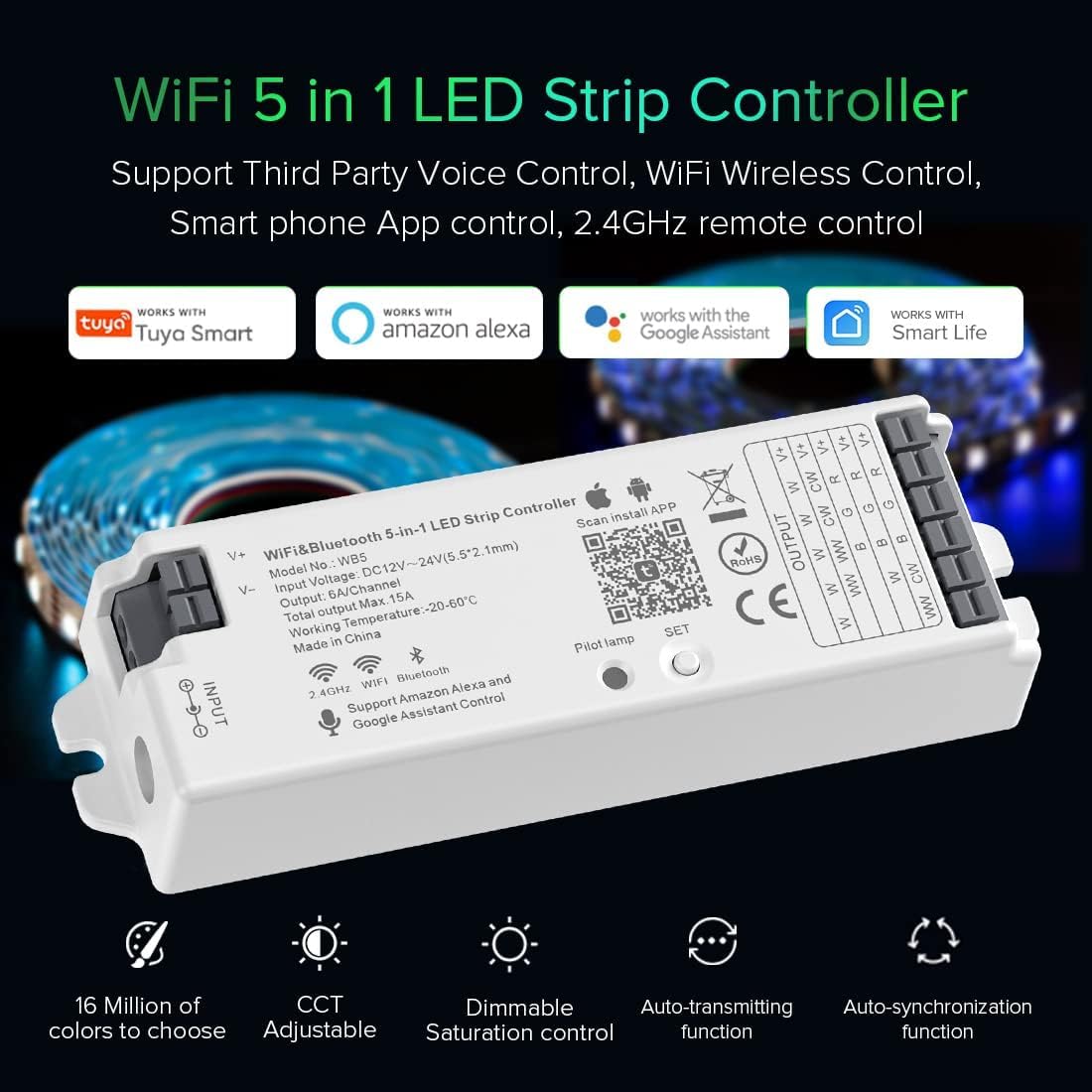

【3 control methods】1st:Compatible 2.4GHz RF Remote: WR01RF,WR02RF,RC01RFB,RC02RFB,RC03RFB,RC04RFB,RC05RFB. 2nd: Tuya Smart ,Smart Life APP 2.4GHz Wi-Fi control. 3rd: Alexa, Google Home Assistant control.Three methods can be used at the same time.

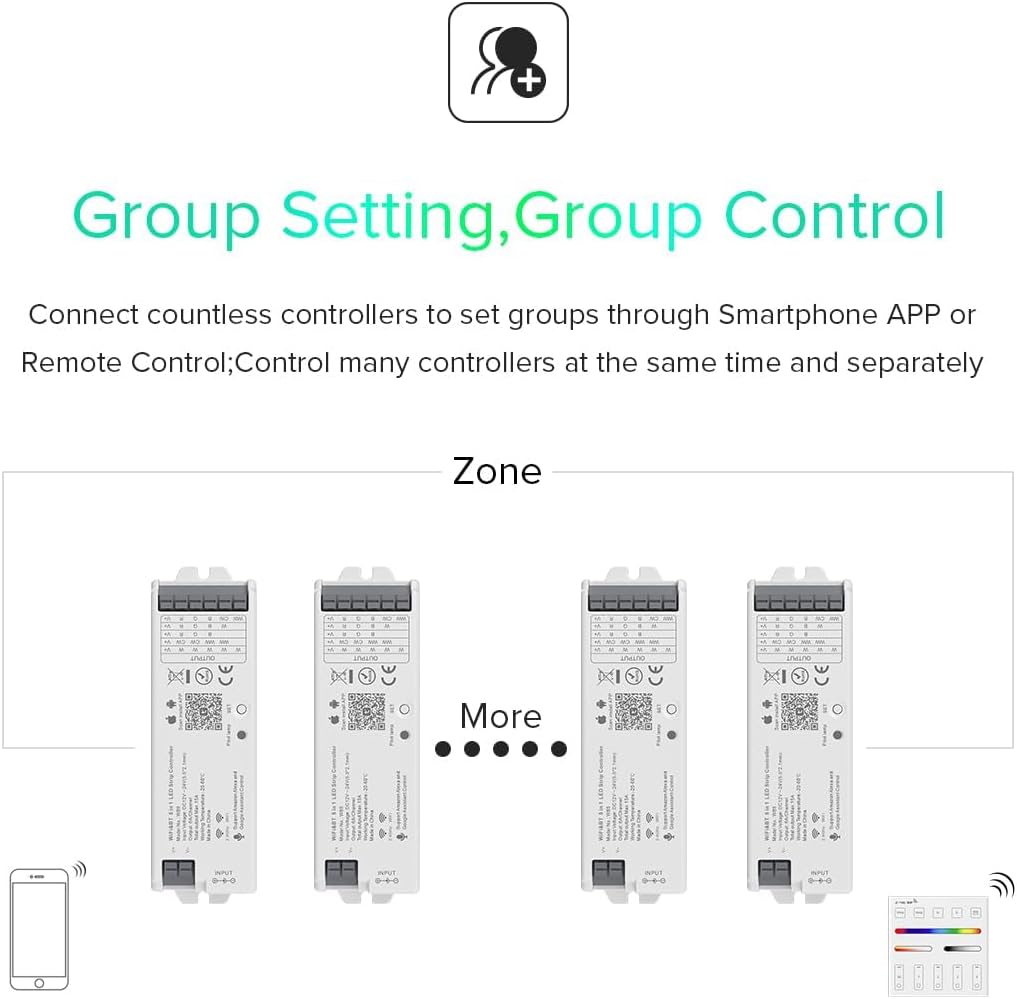

【Multi-function】16 millions of RGB colors. Dual White. Dim Brightness/saturation.Group control. Multi zone control. Voice command. Timmer setting.Countdown turn on/off. Biorhythm. Tap-to-Run and Automation. Secene customization. Sleep/wakeup plan. Don’t disturb mode. Device sharing. Selection of different usage scenarios.
【Auto-transmitting function】Only for remote control dimming. One controller can transmit the signal from the remote control to the another controller within 30 meters. As long as there is a LED strip controller within 30 meters, the remote control distance can be limitless. All the controllers should be the same group.
【Auto-Synchronization Function】Different controllers can work synchronously when they are started at different times, controlled by the same remote control at the same dynamic mode and with the same speed.
